Thermoelectric Cooler Assemblies (TECA) – Reliable Solid-State Temperature Control

Efficient, Quiet, and Precise Cooling & Heating with Peltier Technology

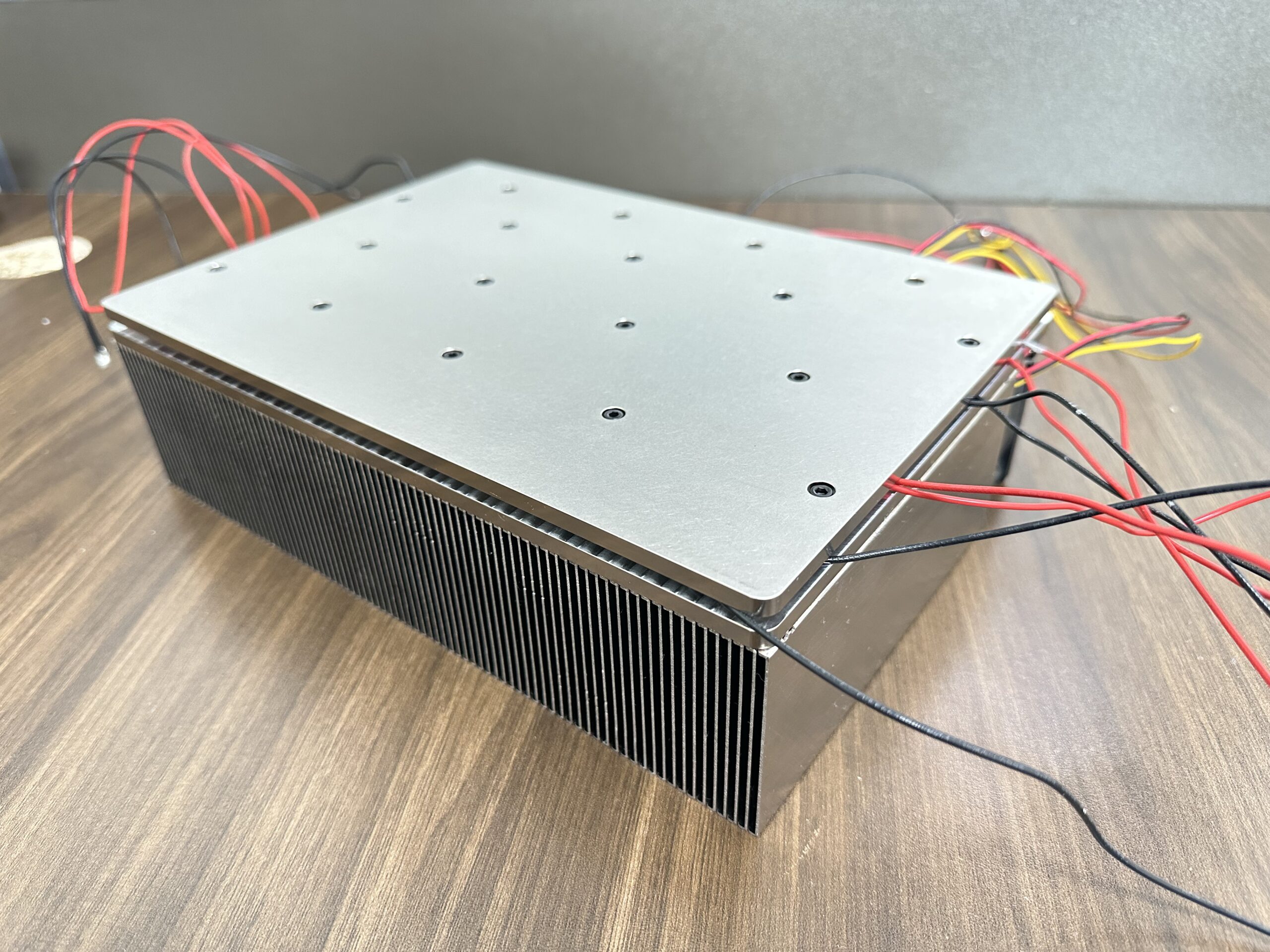

What are Thermoelectric Cooler Assemblies

Thermoelectric Cooler Assemblies (TECA), powered by advanced Peltier technology, are compact, solid-state thermal management systems that provide precise heating and cooling. By integrating thermoelectric modules with heat sinks, fans, or liquid cold plates, these assemblies efficiently regulate temperatures without the need for refrigerants or compressors. With no moving parts in the core cooling mechanism, they offer reliable, low-maintenance performance.

Core Structure of TECA

• Thermoelectric Modules (TEC Chips)

At the heart of every TECA is a thermoelectric module composed of P-type and N-type semiconductor elements. The thermoelectric module utilizes the Peltier effect to create a temperature differential when voltage is applied, absorbing heat on one side and releasing it on the other.

• Hot Side Assembly

The heat generated by the TEC chip is removed through the hot side structure, which typically includes heat sinks, fans, or liquid cold plates. These components ensure efficient heat dissipation and maintain stable performance.

• Cold Side Assembly

The cold side is in direct contact with the target object or surface requiring cooling. It may include mounting plates or interface materials to enhance thermal conductivity and ensure effective heat absorption from the application area.

Advantages of Thermoelectric Cooling Assemblies

• Precise Temperature Control

Thermoelectric cooling assembly systems provide exceptional thermal accuracy, often maintaining temperature stability within ±1°C. With precise control, it is essential for applications involving sensitive components, such as laser diodes, medical diagnostic instruments, and high-precision sensors, where even slight temperature fluctuations can affect performance.

• Dual-Mode Operation

Thermoelectric cooler assemblies support cooling and heating by simply reversing the input voltage polarity. Featuring this dual-mode capability, the TECA system eliminates the need for separate heating elements, reducing complexity and saving valuable space in compact device designs.

• High Reliability

With no moving parts in the thermoelectric module and no reliance on refrigerants or compressors, TECA units deliver quiet, maintenance-free operation and extended service life. These assemblies can provide stable performance in harsh or vibration-sensitive environments due to their solid-state design.

Common Applications of Thermoelectric Cooler Assemblies

• Medical & Life Sciences: Maintain precise temperature control in blood analyzers, PCR equipment, and reagent storage (typically 4–8°C).
• Electronics & Photonics: Efficient thermal management for laser diodes, CPUs, image sensors, and other heat-sensitive components.
• Industrial & Scientific Equipment: Ideal for HPLC systems, aerospace instrumentation, and industrial automation where thermal stability is crucial.
